Tech specs

Specifications

General

  • Model: NS800
  • Waterproof: IP62
  • Cooling: Natural Convection
  • Storage: Black Nylon zipper bag
  • Operating Temperatures: -40F ~ 149F

Electrical

  • Super Capacitor: 500Fx5
  • Peak Current Rating: 800 Amps
  • Clamp Input 12Vdc 15 Amp
  • CS Cable: 12Vdc 8 Amp
  • Charge Time: 1 ~ 5 min

Dimension and Weight

  • Product weight: 2.5 lbs
  • Package weight: 3 lbs
  • Product size: 10 x 4 x 2 in
  • Package size: 11 x 6 x 4 in
  • Case weight: 29 lbs
  • Case size: 22 x 12 x 9 in

Bonus Feature

Check Alternator Performance

When the engine is running, Connect the Red and Black jumper clamps to the battery. The NS800 will display the current voltage from the alternator. This should read between 14.3V and 14.7V. If showing above or below these voltages, you should have the alternator inspected by a licensed professional.

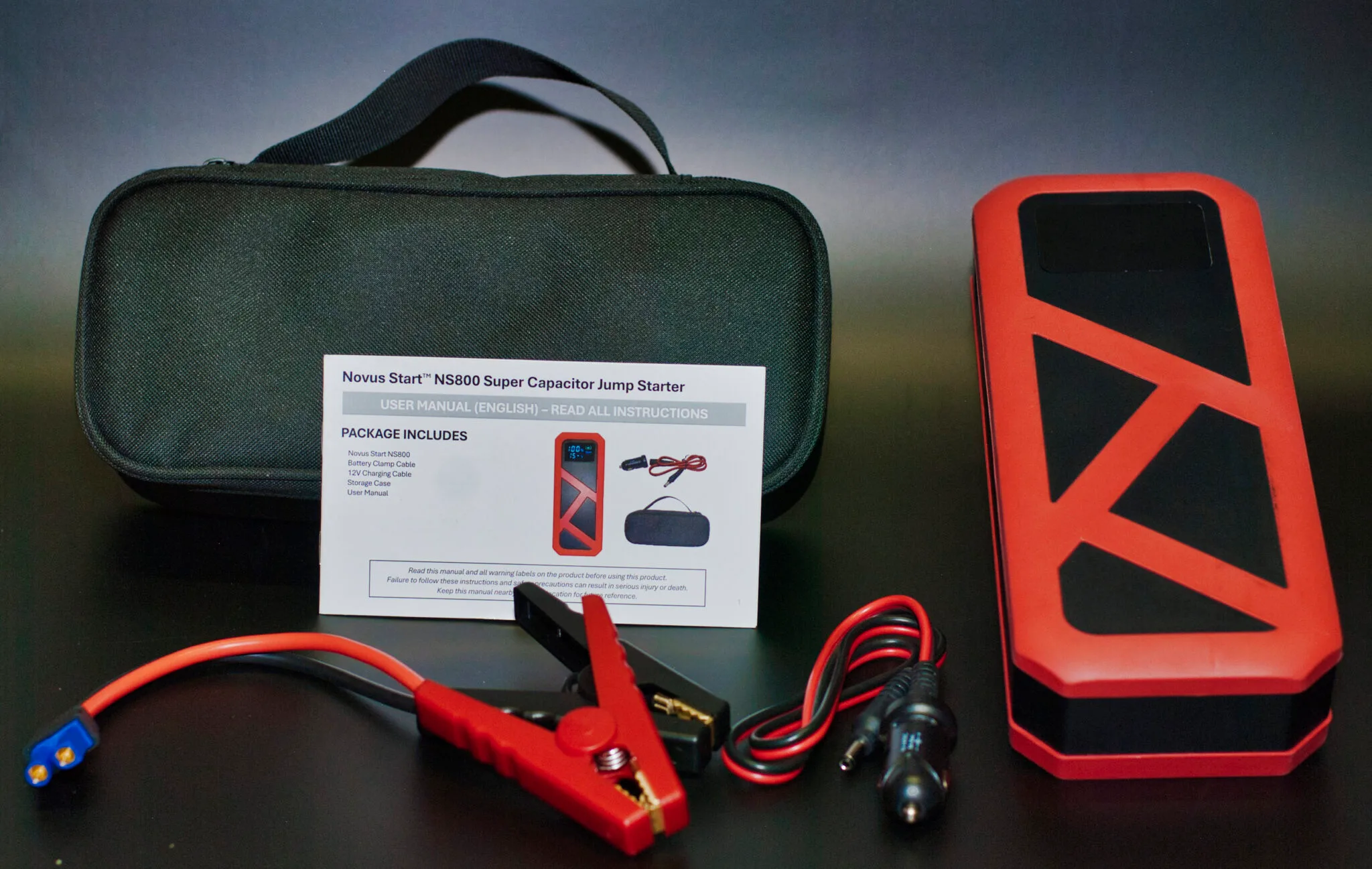

What’s in the box
